| 产品信息 | |
| 型号 | JGX-100ZA(单相整流调压模块) |

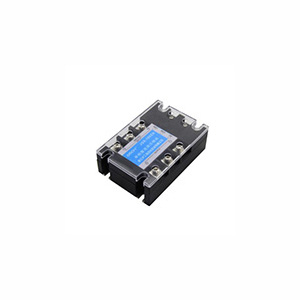

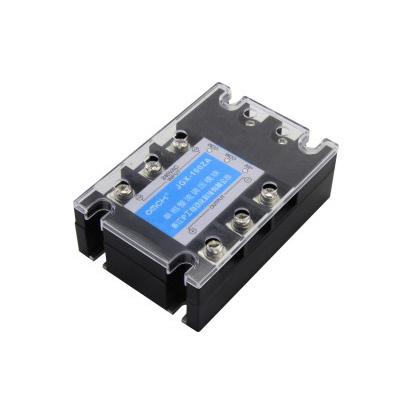

| 产品图片 |  |

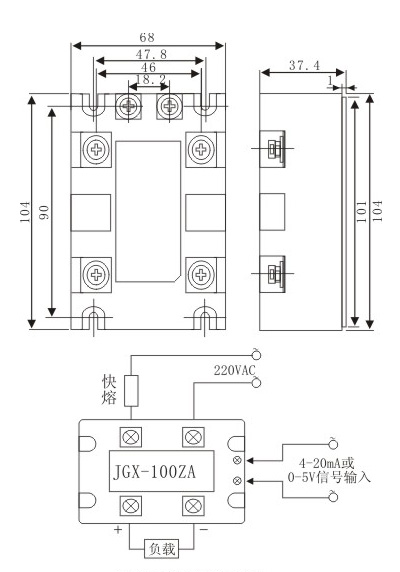

| 尺寸 |
|
| 负载电流Load Current | 10A,25A,40A,60A,75A,90A,100A,120A |
| 负载电压Load Voltage | 175-265VAC |
| 控制电压Control Voltage | 0-5VDC,4-20mA |
| 控制电流Control Current | |
| 通态压降On Voltage | ≤3V |
| 通态漏电流 Off Leakage Current | ≤10mA |
| 断态时间On-off Time | ≤10ms |
| 介质耐压Dielectric Strength | 2000VAC |
| 绝缘电阻Insulation Resistance | 500MΩ/500VDC |
| 环境温度Ambient Temperature | -30℃~+75℃ |
| 安置方式：Mounting Methods | 螺栓固定 |
| 工作指示The Work Instructions | LED |
| 重量Weight | 450g |
