| 产品信息 | |
| 型号 | JGX-3-200LA |

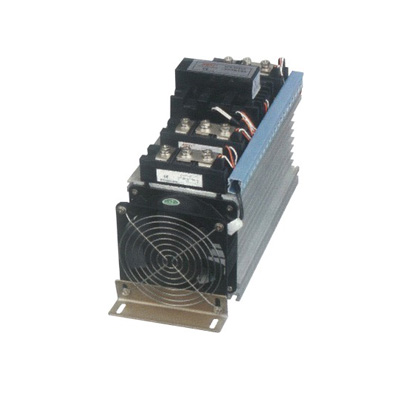

| 产品图片 |  |

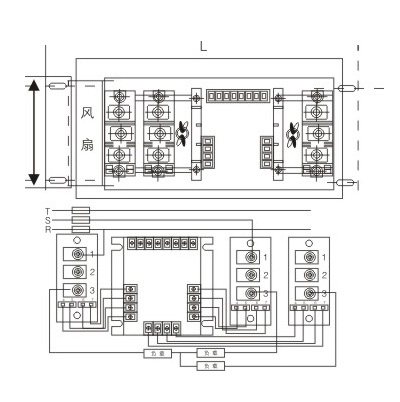

| 尺寸 |
|
| 负载电流Load Current | 90A,120A,150A,200A,250A,300A,350A,400A,500A,600A |
| 负载电压Load Voltage | 380VAC |
| 控制电压Control Voltage | 0-5VDC |
| 控制电流Control Current | DC4-12mA |
| 通态压降On Voltage | ≤2V |
| 通态漏电流 Off Leakage Current | ≤10mA |
| 断态时间On-off Time | ≤10ms |
| 介质耐压Dielectric Strength | 2000VAC |
| 绝缘电阻Insulation Resistance | 500MΩ/500VDC |
| 环境温度Ambient Temperature | -30℃~+75℃ |
| 安置方式：Mounting Methods | 螺栓固定 |
| 工作指示The Work Instructions | LED |
| 重量Weight | |
