产品信息| 型号 | JGX-G-48200DA(AA) |

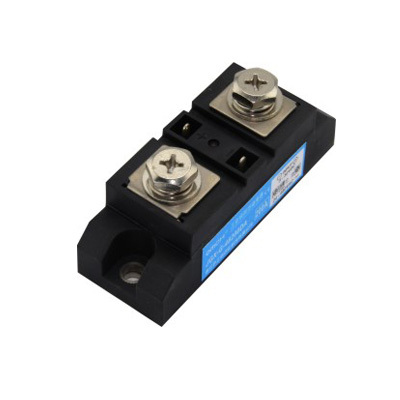

| 产品图片 |  |

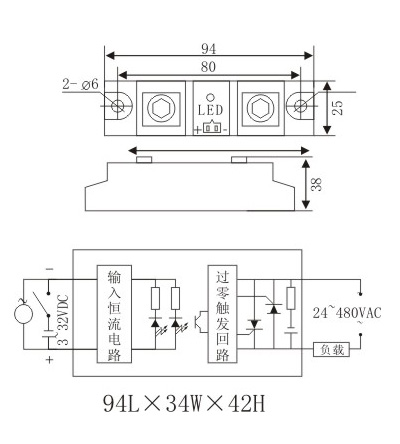

| 尺寸 |
|
| 负载电流Load Current | 200A,250A,300A |
| 负载电压Load Voltage | 24-480VAC |
| 控制电压Control Voltage | 3-32VDC或80-250VAC |
| 控制电流Control Current | DC3-25mA AC≤12mA |
| 通态压降On Voltage | ≤1.5V |
| 通态漏电流 Off Leakage Current | ≤4mA |
| 断态时间On-off Time | ≤10ms |
| 介质耐压Dielectric Strength | 2500VAC |
| 绝缘电阻Insulation Resistance | 1000MΩ/500VDC |
| 环境温度Ambient Temperature | -30℃~+75℃ |
| 安置方式：Mounting Methods | 螺栓固定 |
| 工作指示The Work Instructions | LED |
| 重量Weight | 560g |
