技术参数
| 额定载荷 Rated Load | 5～300 (MPa) |
| 综合精度 Comprehensive Precision | 0.1～0.5%F·S |
| 灵敏度 Sensitivity | 1.0 ～1.5mV/V |
| 蠕变 Creep | ±0.05%F·S/30min |
| 零点输出 Zero Output | ±1 %F·S |
| 零点温度影响 Temperature Effect On Zero | ±0.1～±0.3%F·S/10℃ |
| 输出温度影响 Temperature Effect On Output | ±0.1～±0.3%F·S/10℃ |
| 工作温度 Operating Temperature Range | -20℃～+65℃ |
| 螺纹接口 Threaded Connection | M20×1.5或其它形式 |
| 阻抗 Resistance | 350Ω或 2 kΩ |
| 绝缘电阻 Insulation Resistance | >5000 MΩ |
| 安全过载 Safe Load Limit | 150% F·S |
| 供桥电压 Bridge Voltage |
传感器 10V DC 变送器 10(12)～30V DC |
| 材质 Material |
不锈钢 Stainless Steel |
|
传感器接线方式 Load Cell Mode of Connection |
输入+:红 Input+: Red 输入-:黑 Input-:Black 输出+:绿 Output+:Green 输出-:白 Output-:White |
|
变送器接线方式 Amplifierl Modeof Connection |
电 源:红 Power : Red 公共端:蓝 Public side: Blue 输 出:白 Output:hite |

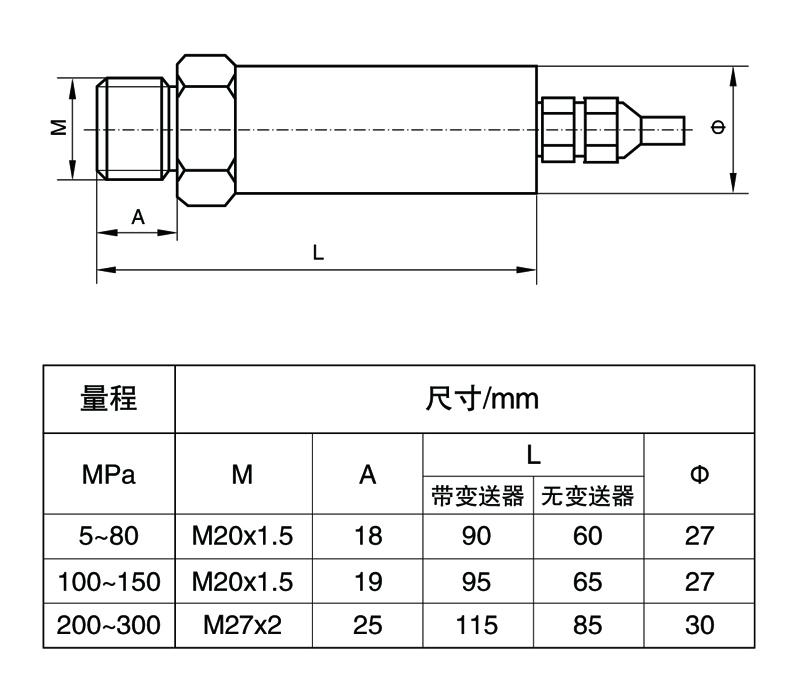

产品结构图
